Switch Questions 2
Question 1
What address does a switch use to determine where to forward the received frames?
A. source Layer 2 address
B. destination Layer 2 address
C. source Layer 3 address
D. destination Layer 3 address
Answer: B
Question 2
<Giong voi cau 10 phan Switch o tren>
Question 3

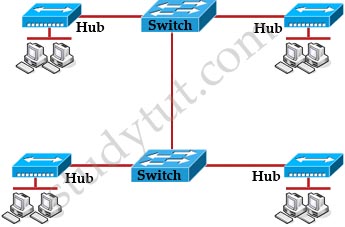

Refer to the below topology.
How many broadcast domains in the topology below?
A. one
B. two
C. six
D. thirteen
Answer: A
Question 4
The partial output below shown after the switch is powered on. Which of the following statements are correct about the status of this switch? (Choose two)
| …. 01:01:15: %LINK-5-CHANGED: Interface Vlan 1, changed state to administratively down 01:01:15: %LINK-3-UPDOWN: Interface GigabitEthernet0/1, changed state to up 01:01:15: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/1, changed state to up …. |
A. Currently interface Gi0/1 is up
B. Currently interface Gi0/1 is administratively down
C. Interface Vlan 1 will need some time to change the state to up
D. Remote management to this switch is not available without further configuration
Answer: A D
